Product Details:
Payment & Shipping Terms:
|
| Designed Machine Speed: | 10-80m/min | Condition: | Brand New |
|---|---|---|---|
| Automatic Grade: | Automatic | Quantity Of Cylinder Drum: | Optional |
| Warranty: | 1 Year | After-sale Service: | Available |
| Voltage: | 380V | Drive Mode: | Full Inverter Controlled |
| HMI: | Siemens Or Mistubishi | Inverter: | Mistubishi |
| No. Of Cylinder Unit: | As Required | Cylinder Drum: | Coated With Teflon |
| Highlight: | mercerising machine,merceriser machine |
||

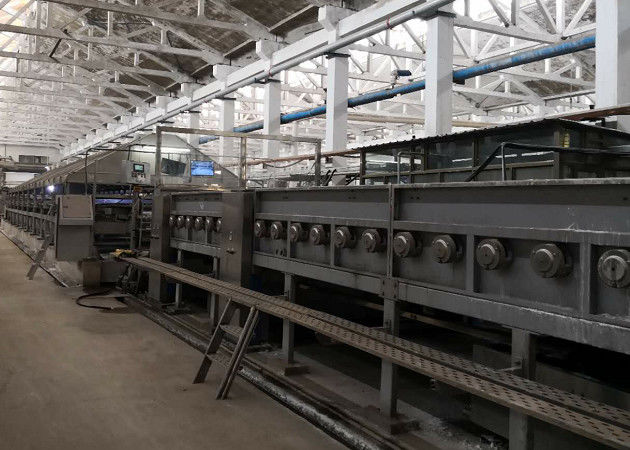

Continuous roller mercerizing machine + washing range , SS 316 outside ball bearing
1- Purpose:
This range is used for mercerize the fabric of cotton denim and hemp blends fabrics. It can make the fabric to be beautiful color and good sheen, at the same it can improve intensity and stability.
2- Process:
fabric feed frame →18 pairs thick alkali chainless mercerizing box→2 bowl high-efficiency squeeze→12.5 pairs Weak alkali stabilize mercerizing box→2 bowl high-efficiency squeeze→(90.fabric feed frame) →【steam washing box(5/6) →2-bowl padder】X8→steam washing box(5/6)→2 bowl high-efficiency squeezer→2x10 drying cylinder (dia.:800mm)→Fabric outlet
3- Technical specifications:
1) Roller width: 1800mm-3200 mm；
working width: 1600mm-3000mm
2) Machine type: hand machine
3) Machine speed:10-70m/min process speed: 10-60m/min
4) Transmission mode: frequency conversion driving, Inovance
5) Controlling device: Mitsubishi PLC
6) Supplying steam pressure: ≥0.4Mpa.
7) Compressed air pressure: ≥0.5Mpa.
8) Supplying water pressure: ≥0.2MPa.
9) Power supply:380V 50HZ,220V 50HZ:
10) Fabric specification: 60GSM—300GSM
